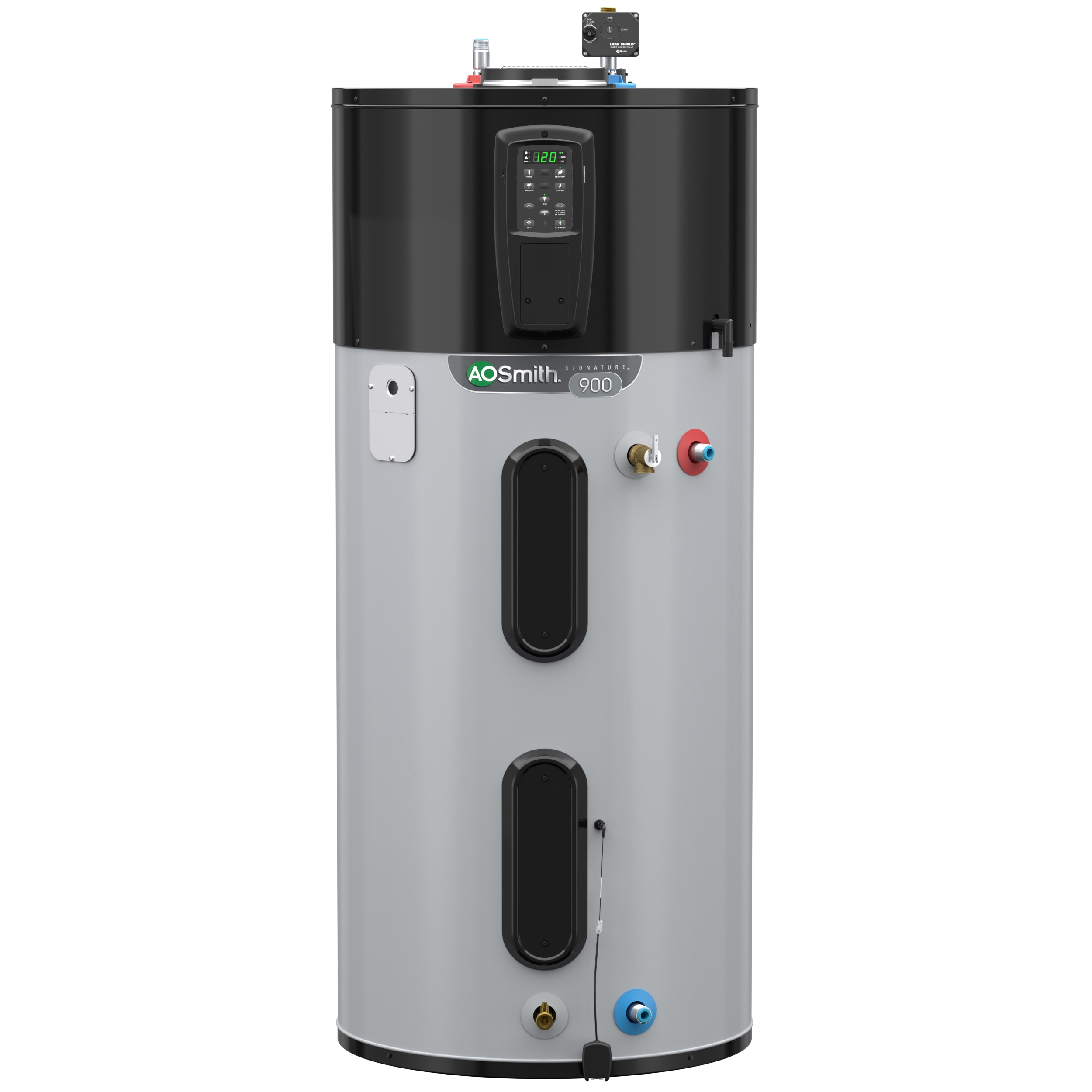

A.O. Smith HPS10-66H45DV Signature 900 66-Gallon 240V Smart Hybrid Heat Pump Water Heater

Product Description

A.O. Smith Signature 900 HPS10-66H45DV is a 66-gallon tall hybrid electric heat-pump water heater with 240V power, a 3.70 Uniform Energy Factor and 82-gallon first-hour hot-water delivery. Two backup copper heating elements have a maximum element input of 4,500W. iCOMM connectivity supports remote monitoring and control. Leak Watch provides leak alerts, and the included Leak Shield accessory automatically closes the water supply when a leak is detected. The unit supports top or side water connections and requires installation space, ventilation and condensate drainage according to manufacturer instructions. A 10-year limited residential warranty applies under the written warranty terms.

Specifications

• Nominal capacity: 66 US gallons
• Electrical supply / maximum element input: 240V / 4,500W
• Backup heating elements: Two 4,500W copper elements
• UEF: 3.70
• First-hour delivery: 82 gallons
• Height / width / depth: 61-1/2 / 26-1/2 / 29.50 inches
• Water connections: 3/4-inch; top or side installation
• Connectivity: iCOMM smart connectivity
• Leak detection / shut-off: Leak Watch / included Leak Shield automatic shut-off accessory
• Tank protection: Tank Guard Plus
• Operating sound level: 45 dBA
• ENERGY STAR certified: Yes
• Limited residential warranty: 10 years; written terms apply
• Approximate shipping weight: 289 lb
